Автомати за очила
Huvitz HPE 810
Автомати за очила Huvitz Kaizer HPE 810
Несравнима стабилност
Изпрати запитване

Автомати за очила Huvitz HPE 810

Крачка към превъзходството

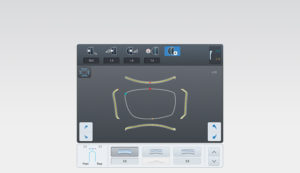

Автоматична/ ръчна 3D симулация

3D simulation supports easier bevel / groove positioning and auto/manual positioning function will satisfy you on position of bevel / groove.

Мощно разпробиване

Powerful Drill
High power motor makes HPE-810 more powerful and leads to 40% reduction in processing time from previous model (HPE-7000).

Design Your Imagination - Scan & Cut (Optional)

Design Your Imagination – Scan & Cut (Optional)
As designs of glasses are diversifying, Scan & Cut function supports processing all designs without any restrictions. Scan your design and fit it in your frame with HPE-810.

Автомати за очила Huvitz HPE 810: СПЕЦИФИКАЦИЯ

Specification
Lens Material Plastic, Polycarbonate, High Index Plastic, Glass, Trivex
Wheel Diameter 150mm, RPG Type
Edging Mode Beveling (Normal / Auto / Manual Mode, Mini Bevel Option)
Grooving (Normal / Auto / Manual Mode, Partial / Hybrid / Dual Grooving Option)
Flat Edging
Safety Beveling
Polishing
Functions Job Manager, Digital Pattern, Hole Editor, Retouch, Bevel / Groove Simulation, Shape Mirroring, Easy Click, Concave Shape, Scan & Cut (Optional)
Utilities LCD Tilting
Automatic Edging Room Door
Edging Room illumination
Simultaneous Bilateral feeling
SD Card Storage (Memory Included)
Barcode Reader (Optional)
Vacuum Interface (Optional)
HW Platform GUI (1GHz), Motor (120MHz)
Display 9.7 inch Color TFT LCD(1024×768) with Touch Screen
Edging Size Max : 90mm
Min : Flat Edging : 18.5mm (without safety bevel) / 23.0mm (with safety bevel)
Bevel Edging : 20mm (without safety bevel) / 24.7mm (with safety bevel)
Drilling Hole Type : Hole, Slot, Notch
Hole Size : Ø1.00~5.00mm
Hole Depth : Max 6.0mm
Range of Hole Drilling : Ø32.0~75.0mm from lens rotation axis,
Slot Width : 1.0~5.0mm
Slot Length : Max 20.0mm,
Tilting Mode : Automatic, Manual (0~30°)
Dimensions 540(W) x 462(D) x 597(H)
Weight 55kg
Power Supply AC 100~120V / AC 200~230V 50/60Hz
Power Consumption 1200W(110V), 1500W(220V)
Designs and details can be changed without prior notice for the purposes of improvement.
